Canbus Ballast 35W: Aozoom ABC 06 AMP

Product Specification:

  • Power AC 35W / AC 45W Available
  • Input Voltage 9-16V
  • Starting Current 3.7A
  • Rated Current 3.6A
  • Output Lumens 3200LM - 4000LM
See Price

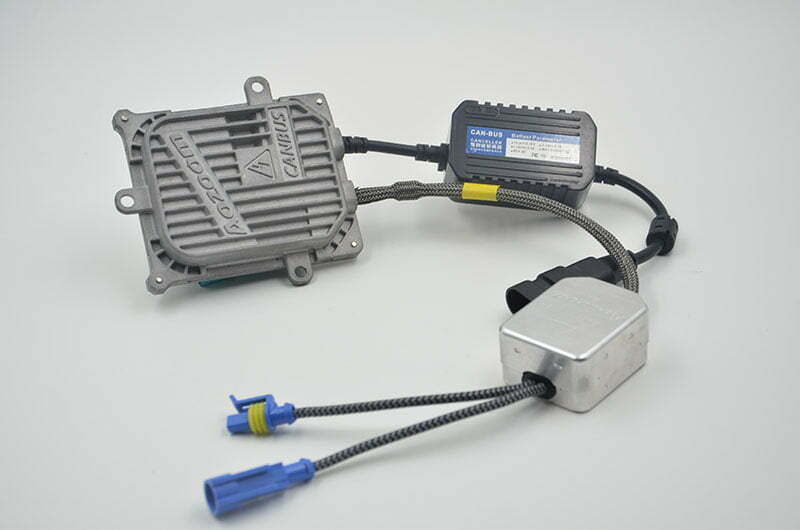

Aozoom ABC 06 Rapid Start and Canbus Ballast

This is the 6th generation CANBus ballast of Aozoom ABC series. It keeps the features of rapid start and CANBus function that ABC series products had and has improved on the technical process details for better quality. Now let me give you an overview.

  The Advanced
  • Housing the Japan SANKEN IGBT Chips exclusive for Automotive, AOZOOM ABC ballast is excellent on the constant performance, high work efficiency and impact resistance. In the whole circuit design, the work efficiency of ABC ballast can reach 92%.
  • The ABC series ballast has the featured of rapid start function, which could reach steady state flux 80% in 2 seconds, and 100% flux in 3 seconds, providing around 3200 lumens on a quality 4300K Bulb. It accepts a 9-16V range for input and will power all HID bulbs with industry-standard AMP connectors.
  • The ABC series is Canbus Ballast. When starting up, the current is about 4.2±0.2A; after a stability, the current is 4.1A±0.2A (the input voltage is 13.2V). It can stabilize the power rapidly and imitate the halogen bulb all the time. Moreover, it has an integrated error canceler on the input line, which can pass the electronic detect from OBD Canbus system and make it compatible with most European vehicles.
  • The ballast circuit board is fully sealed by superior AB glue. It is shockproof, waterproof and high-pressure resistant.
  • AOZOOM ABC CANBus ballast presents a open-circuit fault protection for the output current. If the HID bulb went out suddenly under the open situation, the ABC ballast can light up the bulb quickly and automatically in 0.1 seconds.
45W02 01 - Canbus Ballast 35W: Aozoom ABC 06 AMP

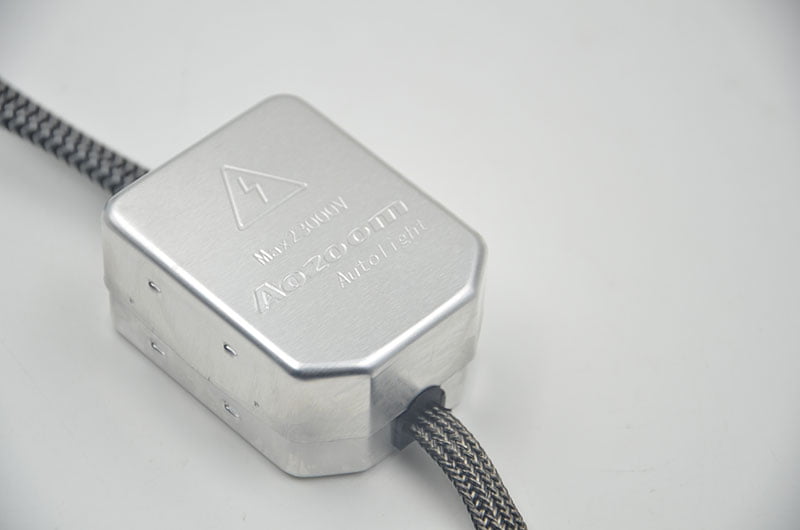

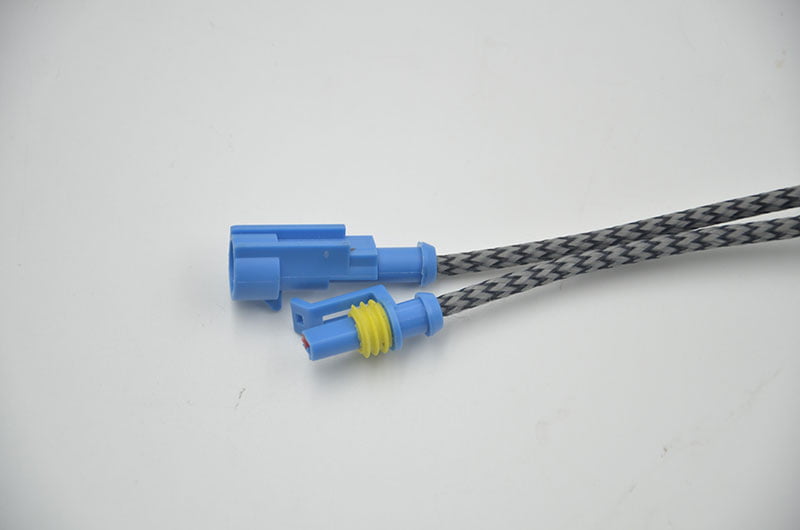

Compatibility The igniter cord can be unplugged from the ballast, you can easily change from AMP to D2S or D1/D3. If an igniter does happen to go bad, it can easily be replaced as well.

Evolution After many years of accumulation in the Asian market, we have made multiple improvements to the product according to the undesirable issues. Now,  the defective rate of AOZOOM ballast can be controlled under 0.3%.  Moreover, the ballast is power with the constant power, no matter how input voltages changes, our ballast can provide output power stably to the HID bulb, making the variation of output power less than 1%, which can extend the working lifespan of ballast and HID. We provide a 3 years quality assurance and after-sales service for the all ballast series products. If the ballast is broken within 3 years, we will replace a new for you.

Standard The anti-electromagnetic interference of AOZOOM ballast follows the S95/54/EC standard, and the waterproof reachs IPX6 standard

Quality Control AOZOOM has a strict QC standard. All the series ballasts from AOZOOM must be inspected 30 thousand times of stroboscopic detection and aging for 24 hours before shipment. The vibration test, waterproof test (in grade), salt spray test and damage test will be conducted for the sample inspection in proportion from the large cargo. We promise to deliver the best products to our clients.

Model H1, H7, H3, H11, 9005, 9006, 9012, H4, 9012, D2H, etc Available.

Technical Parameters

Power: AC 35W / AC 45W Available
Input Voltage: 9-16V
Starting Current: 3.7A
Rated Current: 3.6A
Output Lumens: 3200LM - 4000LM
